RUSH BUGGY - BUGGY Complete Flat Pack

From AUD $40,950.00
  • Product code: RTBFPCOMPLETE



Weld it yourself and customize your Buggy your way.




125 x 92" with Trophy Truck 'J' Arm Suspension


1 3/4"" Chromoly Roll Cage Tubing, extra wide cab









    • All plans and maps

    • Chassis

    • Front Arm Kit - Top arms, bottoms arms and uprights fully tig welded and assembled

    • Rear Shock Mounts

    • All pivot points

    • Rear Arm Kit - fully tig welded and assembled

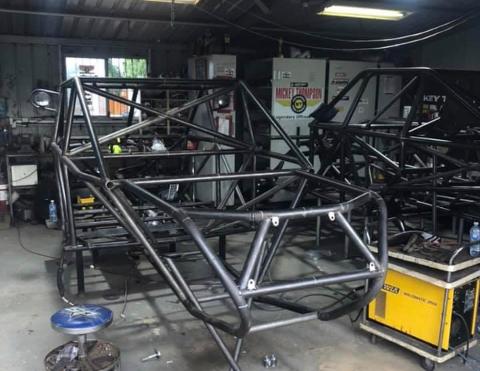

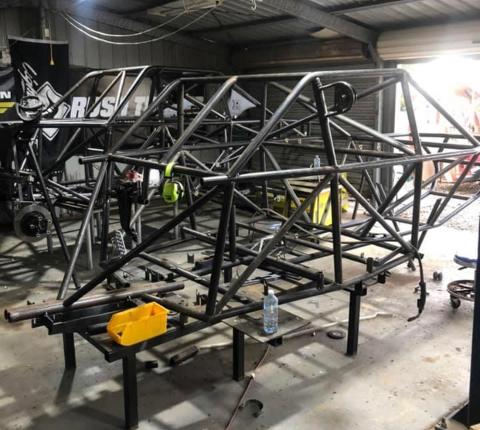

    Rush BUGGY Chassis


    **Weld these parts yourself**


    • 1 3/4"" Chromoly Roll Cage Tubing




    • Laser cut 4130 Chromoly Tube



    • Front and Rear pivot suspension plates



    • Mini Chasis jig table to locate front and rear suspension points

    Rush BUGGY Flat Pack Shock Mounts
    **Weld these parts yourself**


    • Front Bulkhead with steering rack mount/upper shock mounts



    • Front upper arms suspension pivot plates



    • Rear upper boxed shock mounts

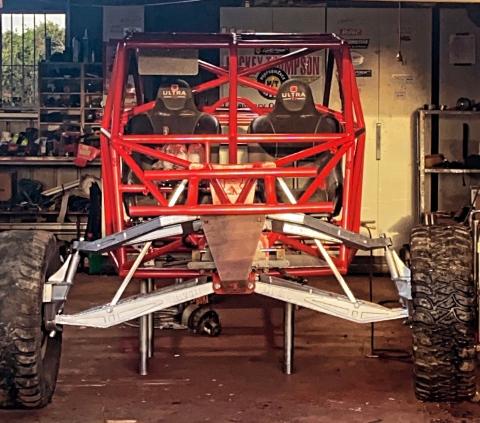

    RUSH BUGGY Front Suspension  - TIG Welded
    **These parts come TIG Welded**


    • Front uprights



    • Machined for a 4140 spindle



    • Caliper mounts for 4 or 6 piston brakes



    • TIG welded Chromoly Boxed Front lower and upper arms

    RUSH BUGGY Rear Arms  - TIG Welded

    **These parts come TIG Welded**


    • Chromolly Boxed TIG welded Rear Arms

    • Using inner bush pivot with outer hiem joint.  These are made with a hub plate mount for you to weld on your specific brand of hub plate







    **Shipping is not included and will be an additional cost. Shipping can be arranged by Rush Trucks and charged to the purchaser or the purchaser can arrange own shipping.
